2016 Kia Sorento T-harness wiring

0 votes
Since the 2016 Kia Sorento with a standard key does not show a wiring diagram for using the T-harness.

Do you have a diagram I can download for this?



Thanks
asked Jan 12, 2018 in Kia by Jerry Meeks (240 points)

1 Answer

+1 vote
It is the exact same diagram as without a t-harness, the THAR-ONE-KHY2 will do the wiring in ignition connector.
answered Jan 12, 2018 by Mathieu Bertrand Collin (62,040 points)
So I still have to cut and splice a ton of wires like for the canbus and such?

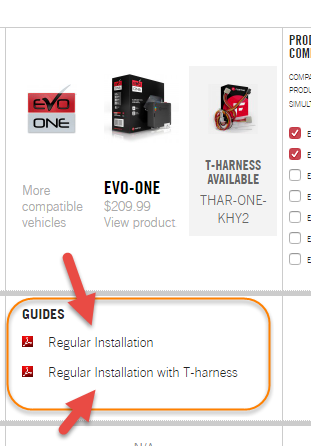

Installation guides for the 2016 kia sorento key start and the EVO-ONE , with and without the KHY2 harness, are on the fortin.ca website: https://fortin.ca/en/vehicles/kia/sorento/2016-standard-key/

...
